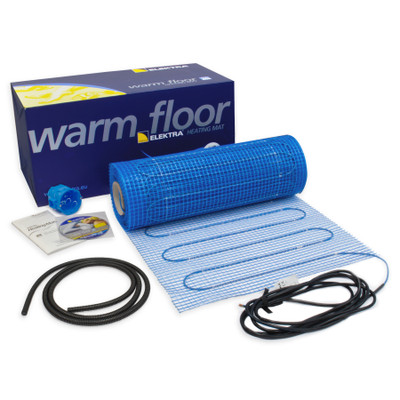

The Elektra MD160 Underfloor Heating Mat Range is designed to be a Primary heating source within a room like a Kitchen or Living Room. The heating mat consists of a thin heating cable that is stitched to a fibre glass mesh. The mat is 500mm wide and ends in a 4 m "cold tail" supply cable. The system is designed for use indoors to give a primary heating source within a conservatory. The Mat should be installed with a Flexible Self Levelling Compound or a Flexible Tile Adhesive, we recommend a 6-8mm covering. 160W Heat Mats can be used with Laminate flooring with 8-10mm self-levelling compound on top.
Manufactured in Europe complying with ISO 9001 using the highest quality raw materials, in accordance with IEC EN 60335-2-96. Elektra electric underfloor heating mats have gained many approvals around the world, including the German VDE - probably the highest standard in Europe.
CE Certified
Lifetime guarantee is available for Elektra MD Underfloor heating mats and UK based technical support for the installation / operating of the underfloor heating is provided by our experienced & qualified technicians.
*Please note - Mats over 10m2 will consist of 2no. heating mats.
Mat Thickness | 3.9mm |
Min Installation Temp | -5oC |
Max Working Temp | +110oC |
Cold Tail | 1No. 4 metres long - 3 cores |
Insulation | FEP (Teflon) + XLPE |
Outer Sheath | XLPE |
Output Power Tollerance | +5%, -10% |
Min Bending Radius | 5D |
IP Rating | IPX7 |
